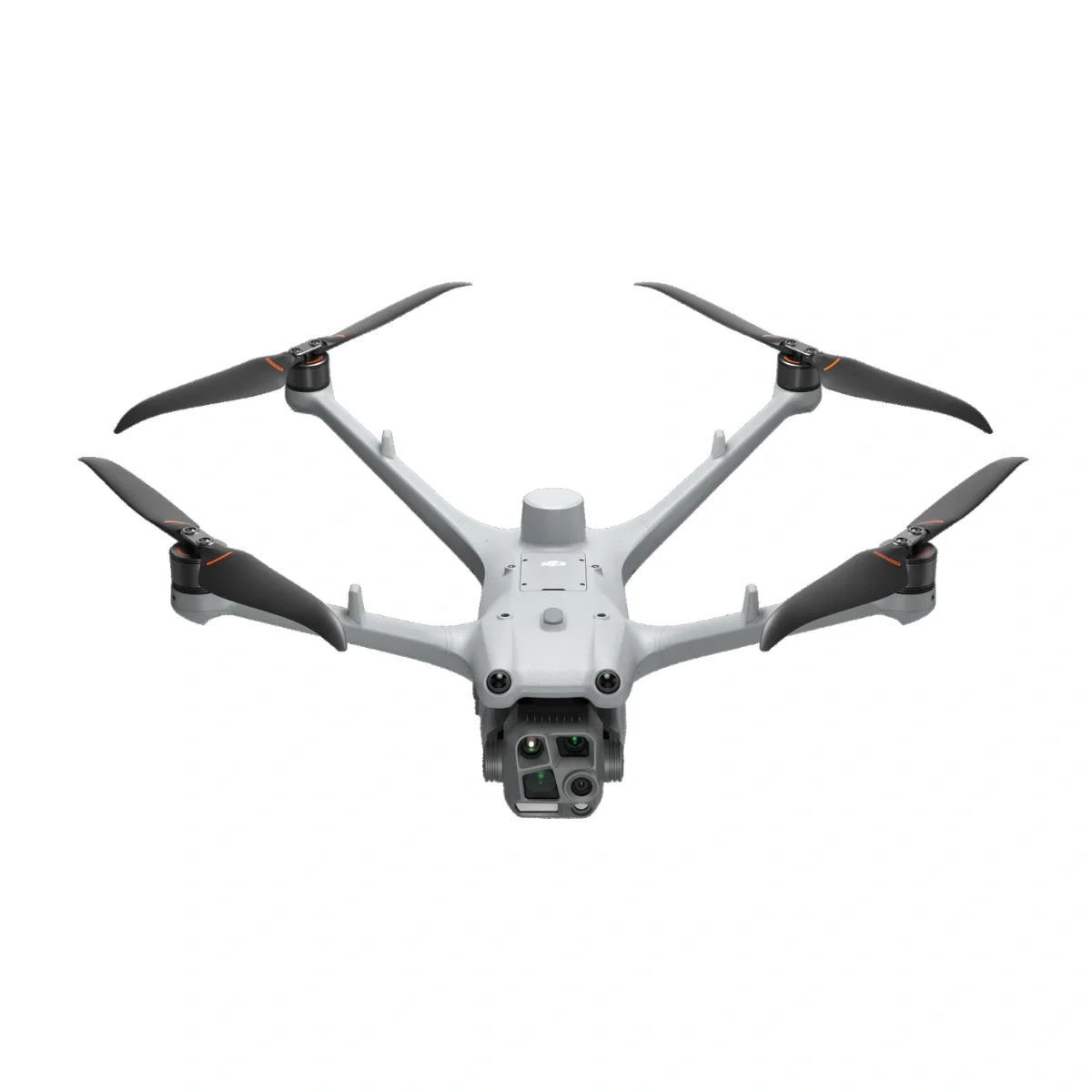

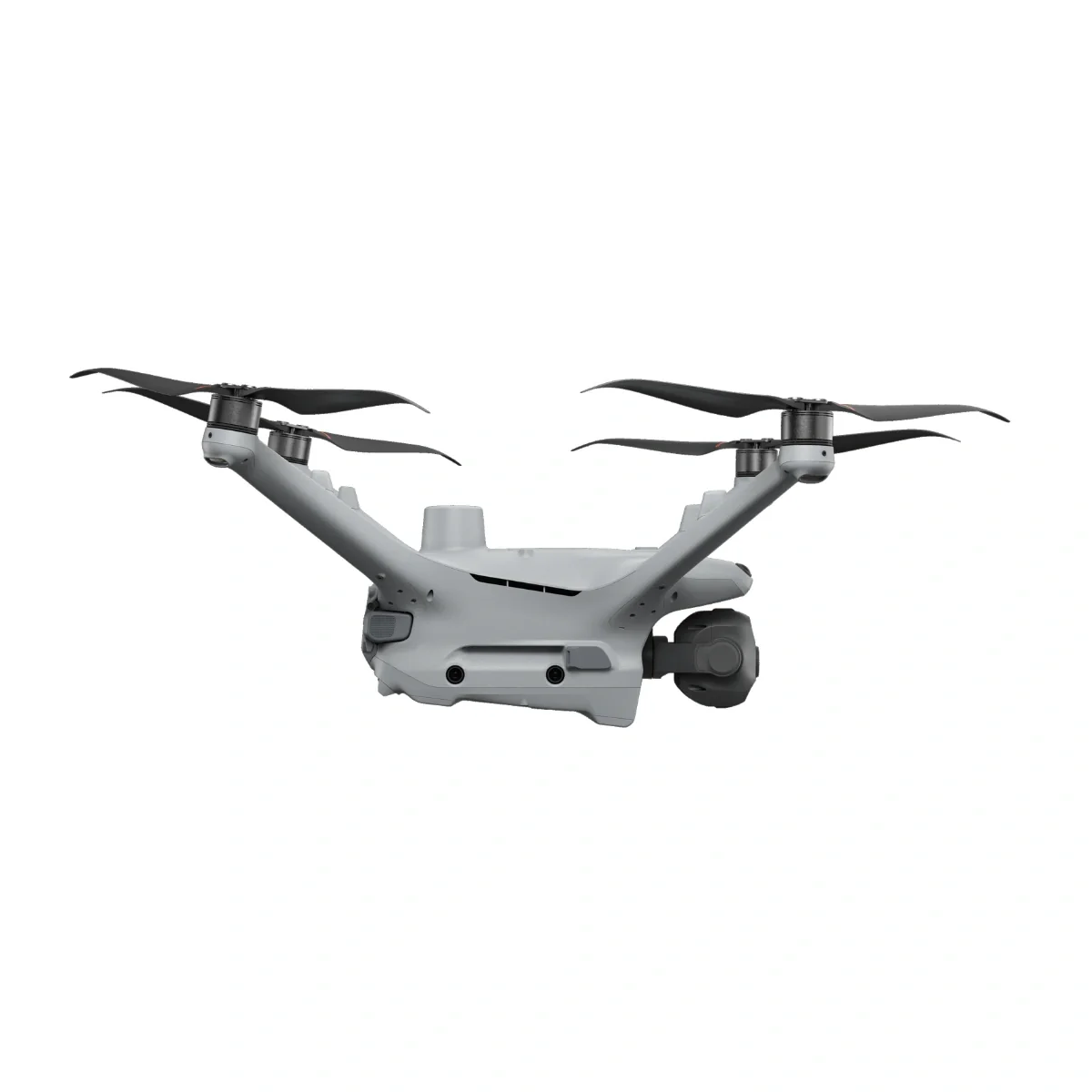

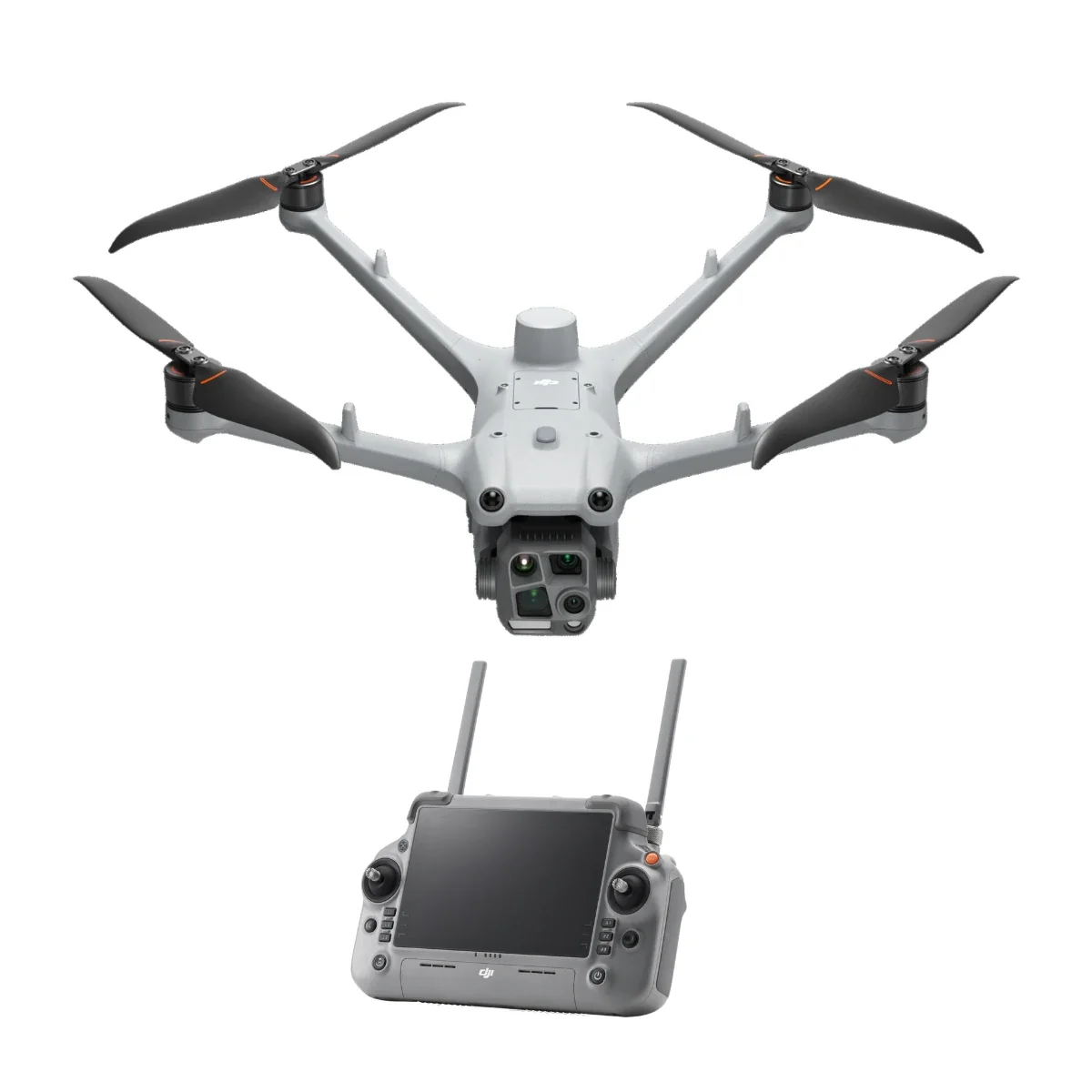

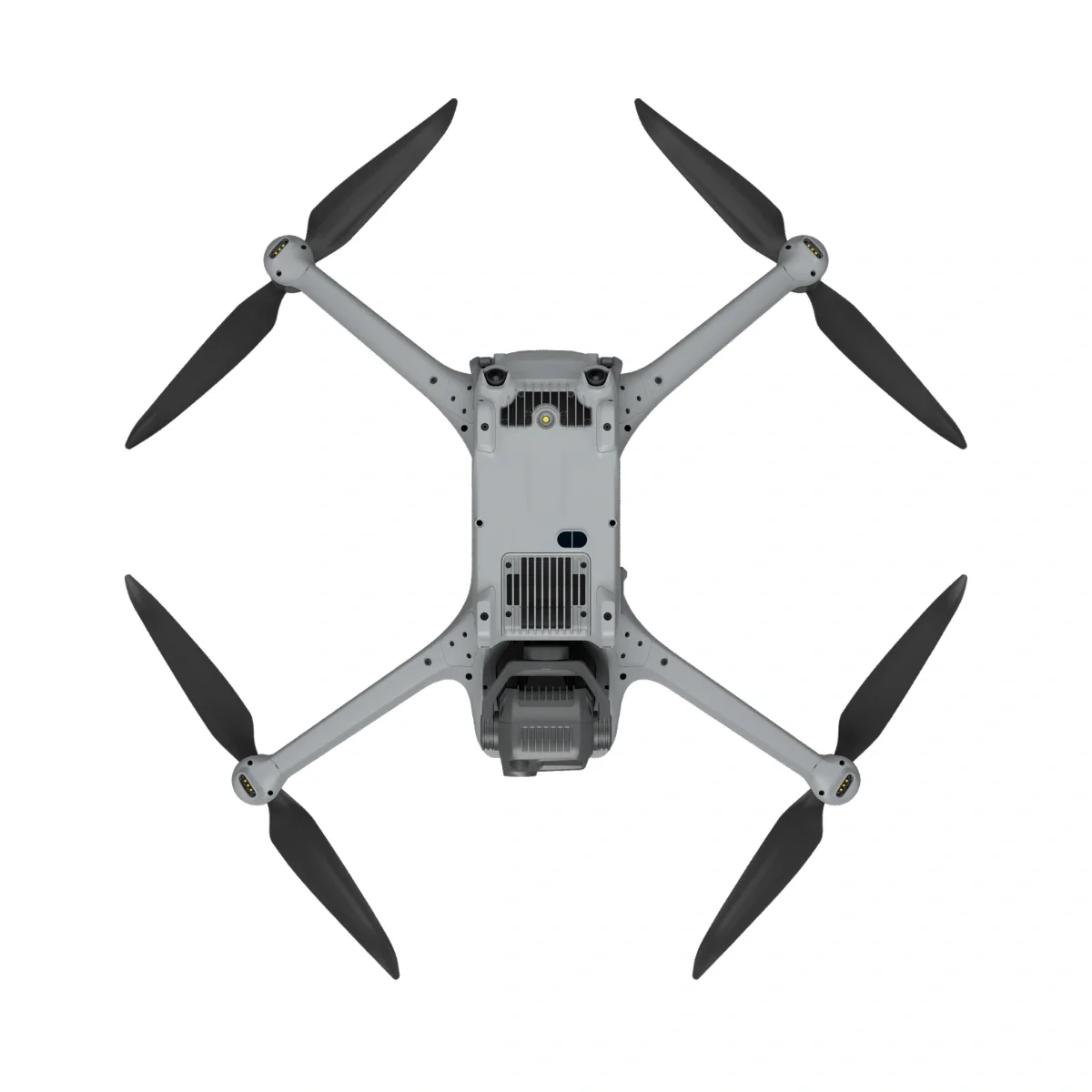

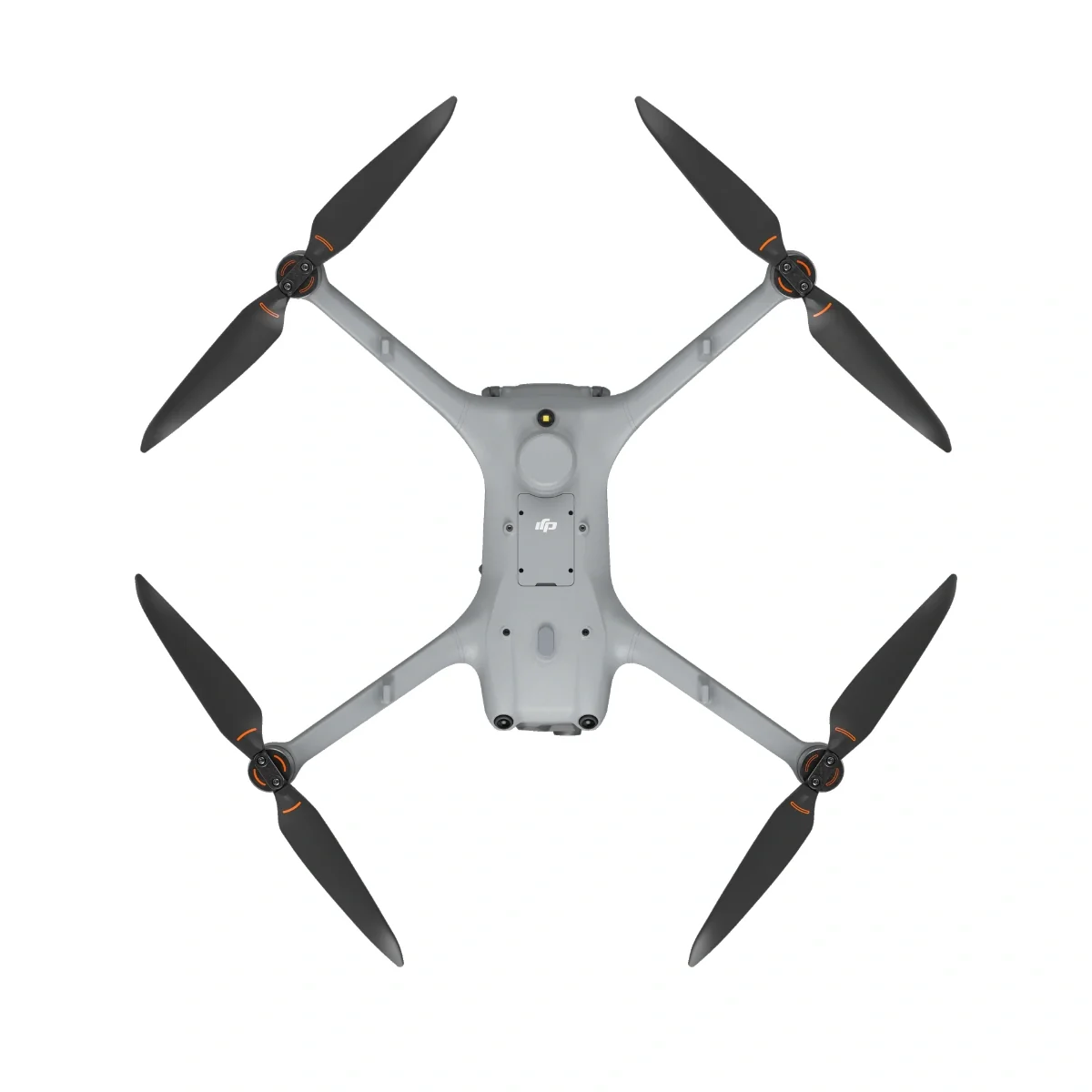

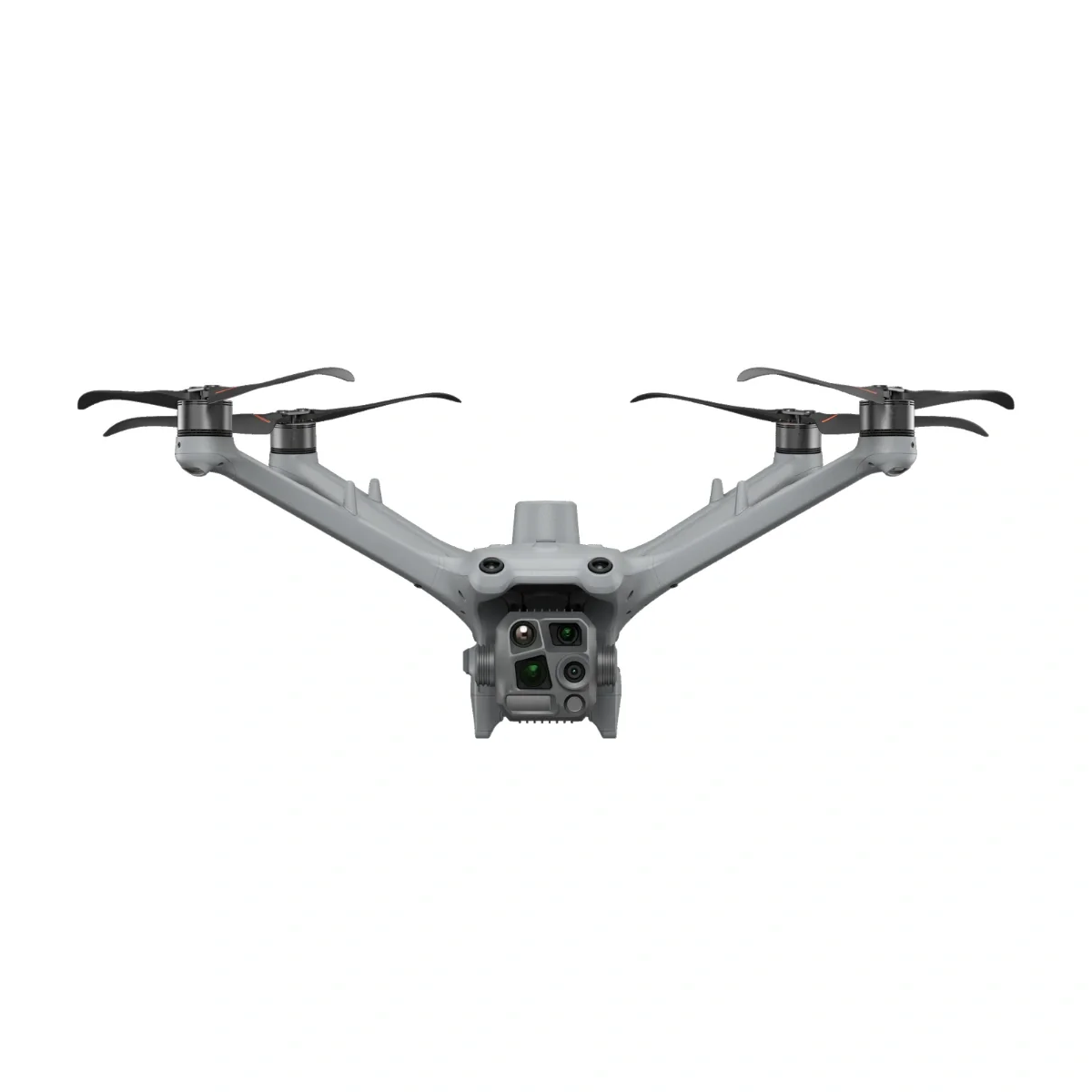

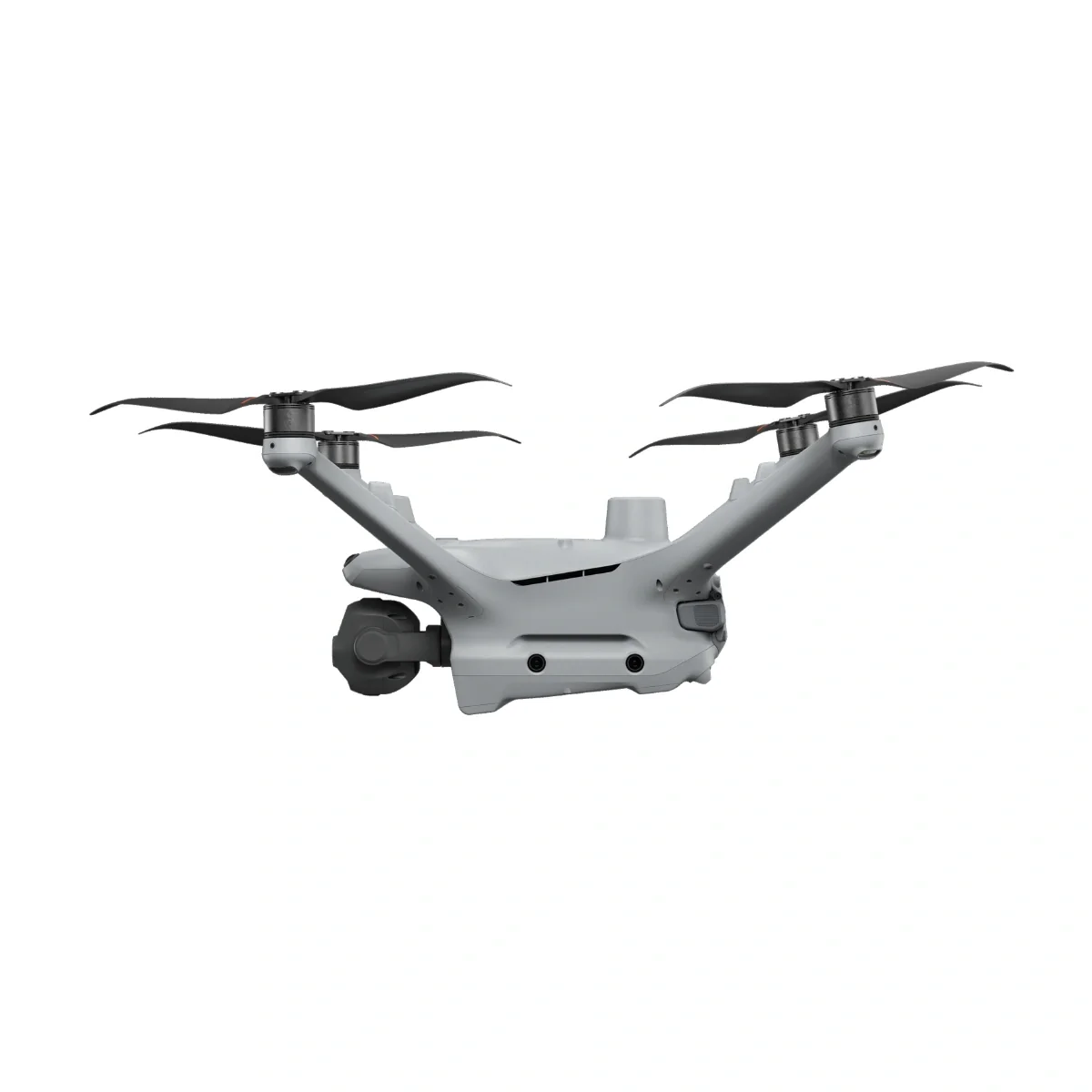

DJI Matrice 4TD with RC Plus 2 Enterprise Enhanced Controller: reliable thermal and high-resolution imaging drone platform

The DJI Matrice 4TD is an enterprise-grade aerial platform designed for operations that demand visibility, endurance, and reliability in challenging environments. Built for public safety, infrastructure inspection, and remote monitoring, the Matrice 4TD integrates high-resolution visual imaging, thermal sensing, and advanced obstacle awareness into a single IP55-rated aircraft.

This standalone configuration includes the RC Plus 2 Enhanced Controller, delivering a rugged control solution for field deployment where weather, terrain, and signal continuity cannot be compromised.

Key features at a glance

• Triple 48 MP visual cameras support wide, medium, and telephoto inspection views.
• 640 × 512 thermal sensor enables infrared detection in low-visibility environments.
• Thermal video up to 1280 × 1024 at 30 fps with UHR enabled.
• Thermal still photos support Normal and UHR Infrared Image modes.
• Night Scene mode improves situational awareness during nighttime operations.
• Near-infrared auxiliary lighting supports visual clarity in dark conditions.
• Up to 47 minutes of maximum flight time supports extended missions.
• Wire detection identifies 12 mm obstacles at speeds up to 15 m/s.
• 80° upward gimbal tilt enables under-bridge and overhead structure inspection.
• IP55-rated airframe supports operation in rain, fog, and dust.

How does the Matrice 4TD compare to the Matrice 4D and Matrice 4T?

The DJI Matrice 4TD combines the thermal imaging capabilities of the Matrice 4T with the rugged, dock-ready airframe of the Matrice 4D. For teams evaluating the three platforms, the table below highlights the most important differences.

Medium Tele Camera48 MP48 MP48 MP



Feature	DJI Matrice 4TD	DJI Matrice 4D	DJI Matrice 4T
Primary Use	Thermal inspections, public safety, search and rescue, all-weather operations	Mapping, surveying, infrastructure inspection, autonomous dock operations	Portable thermal inspection and public safety missions
Thermal Camera	✓ 640 × 512 thermal camera	—	✓ 640 × 512 thermal camera
Wide Camera	48 MP, 1/1.3″ CMOS	20 MP, 4/3″ CMOS, mechanical shutter	48 MP, 1/1.3″ CMOS
Tele Camera	48 MP	48 MP	48 MP
Weather Protection	✓ IP55-rated	✓ IP55-rated	No official IP rating
Maximum Flight Time	Up to 47 minutes	Up to 54 minutes	Up to 49 minutes
80° Upward Gimbal Tilt	✓ Supported	✓ Supported	—
Wire Detection	✓ Detects 12 mm wires at up to 15 m/s	✓ Detects 12 mm wires at up to 15 m/s	Standard omnidirectional obstacle sensing
DJI Dock 3 Compatible	✓ Yes	✓ Yes	—
Best For	Teams needing thermal imaging plus all-weather and autonomous deployment capability	Surveying and mapping teams needing a mechanical-shutter camera in an IP-rated platform	Portable thermal inspections where weather sealing and dock integration are not required

In short: The Matrice 4TD is the thermal-equipped member of the Matrice 4D Series. It combines the thermal imaging payload of the Matrice 4T with the IP55-rated, DJI Dock 3-compatible airframe, advanced wire-detection capability, and 80° upward gimbal tilt found on the Matrice 4D platform.

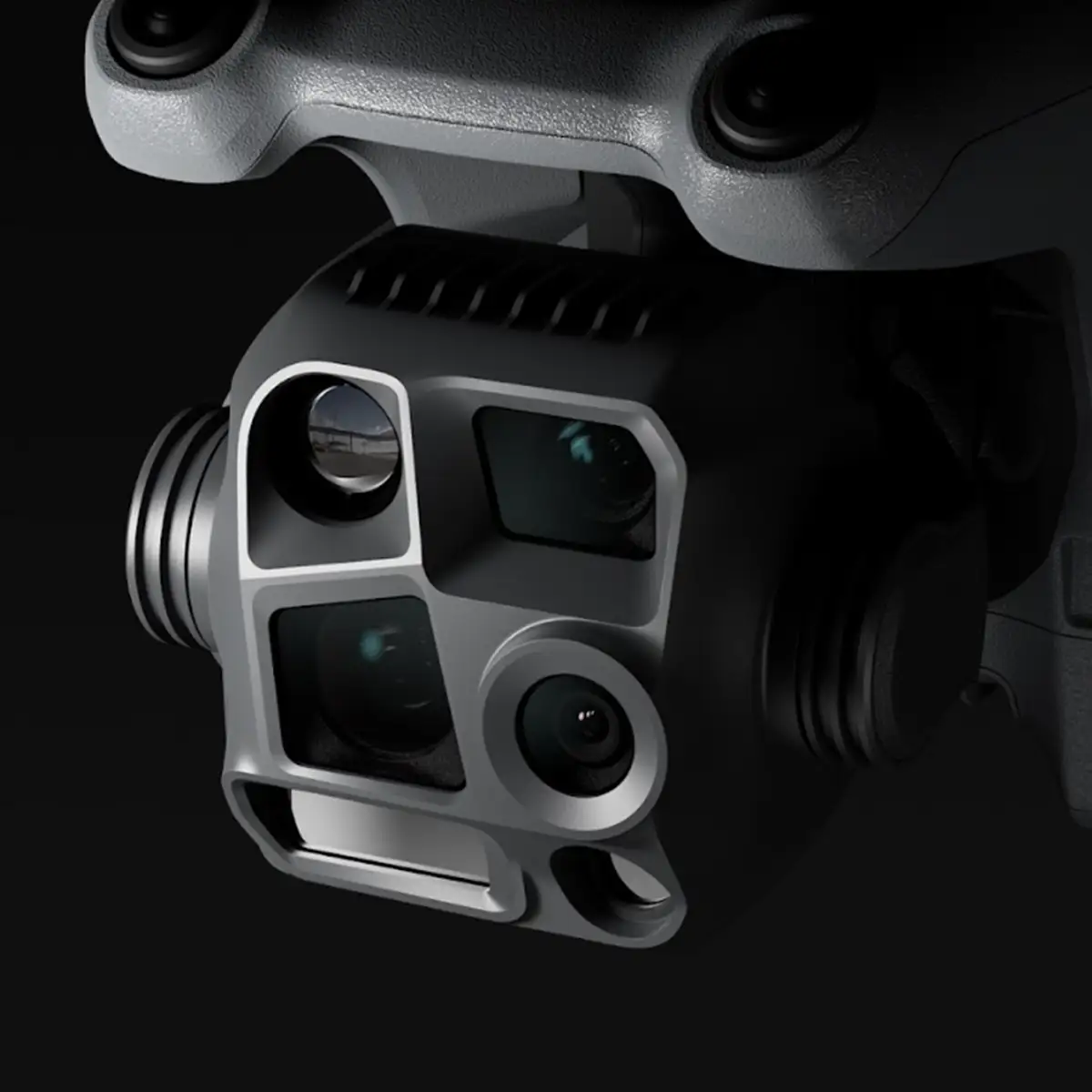

Integrated multi-sensor imaging for low-visibility operations

The Matrice 4TD integrates three 48 MP visual cameras with an infrared thermal camera to support observation across multiple distances and lighting conditions. The thermal system outputs 640 × 512 video at 30 fps under normal operation, with support for 1280 × 1024 video at 30 fps when the Ultra-High Resolution Infrared Image function is enabled and Night Scene mode is disabled.

For still photography, the thermal camera supports both Normal Mode and UHR Infrared Image Mode, allowing operators to capture single or timed thermal images based on mission requirements.

Endurance, safety, and mission reliability in harsh environments

With up to 47 minutes of maximum flight time, the Matrice 4TD supports extended missions without frequent battery changes. Its obstacle sensing system is designed to detect wires as small as 12 mm while flying at speeds up to 15 m/s, supporting safer operation near utilities and infrastructure.

The 80° upward gimbal tilt enables direct inspection of bridge undersides and overhead structures, while IP55 protection allows continued operation in rain, fog, and dusty conditions common in real-world deployments.

Applications

• Public safety response: thermal and visual assessment during emergencies.
• Infrastructure inspection: powerlines, bridges, towers, and industrial assets.
• Search and rescue: heat detection and long-duration overwatch missions.
• Night operations: visual and thermal coverage after dark.
• Remote monitoring: reliable operation in weather-affected environments.
• Utility inspection: obstacle-aware flight near wires and structures.
• Disaster assessment: post-event damage evaluation in hazardous conditions.
• Perimeter security: long-endurance patrol and observation missions.
• Powerline and substation inspections with advanced LiDAR support

Designed for enterprise reliability

The Matrice 4TD is engineered to deliver consistent performance in environments where visibility, weather resistance, and flight safety are critical. Its integrated sensor suite reduces payload complexity while expanding mission capability.

Combined with the RC Plus 2 Enhanced Controller and DJI’s enterprise transmission systems, the platform supports dependable deployment across demanding operational scenarios.

The DJI Matrice 4TD with RC Plus 2 Enhanced Controller provides a mission-ready aerial solution for teams requiring thermal insight, telephoto reach, and all-weather reliability. DSLRPros delivers expert configuration and long-term enterprise support.
Available now from DSLRPros. Purchase today to equip your team with proven operational capability.

Specifications

General

• Model: Matrice 4TD
• Number of rotors: 4
• Configuration: Drone with camera
• Edition: Standard
• FAA registration: Required for non-commercial use
• Features: Camera included
• Kit style: Base
• Skill level: Enterprise
• Color: White

Aircraft Performance

• Maximum flight time: 54 minutes
• Max hover time: 47 minutes
• Takeoff weight: Up to 4.6 lbs (2.0 kg)
• Max ascent speed: 6 m/s (Normal), 10 m/s (Sport)
• Max descent speed: 6 m/s (Normal), 8 m/s (Sport)
• Max horizontal speed: 15 m/s forward, 12 m/s backward, 10 m/s sideways (Normal); 21 m/s forward, 19 m/s backward, 15 m/s sideways (Sport)
• Max wind resistance: 12 m/s
• Max takeoff altitude: 21,325 ft (6500 m)
• Max flight distance: 43 km
• Max pitch angle: 25° (Normal), 30° (Sport)
• Max angular velocity: 200°/s

Positioning and Environment

• GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
• Hovering accuracy (vertical): ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
• Hovering accuracy (horizontal): ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
• Operating temperature: -4°F to 122°F (-20°C to 50°C)
• Ingress protection rating: IP55

Storage

• Supported microSD cards: U3/Class 10/V30 or above (exFAT)
• Recommended: Lexar 1066x (64 GB to 512 GB)
• Recommended: Kingston Canvas Go! Plus (64 GB to 512 GB)

Remote Controller

• Model: DJI RC Plus 2 Enterprise
• Operating temperature: -4°F to 122°F (-20°C to 50°C)

Camera System

• Still resolution: Wide-angle 20 MP; Medium tele 12/48 MP; Tele 12/48 MP
• Video resolution: 4K (3840 × 2160 @30 fps), FHD (1920 × 1080 @30 fps)
• Image sensors: Wide 1/1.3″ CMOS 48 MP; Medium tele 1/1.3″ CMOS 48 MP; Tele 1/1.5″ CMOS 48 MP
• Lens: Wide 82° FOV, 24 mm, f/1.7; Medium tele 35° FOV, 70 mm, f/2.8; Tele 15° FOV, 168 mm, f/2.8
• Focus range: Wide 1 m to ∞; Medium tele 3 m to ∞; Tele 3 m to ∞
• Digital zoom: 16× (112× hybrid)
• ISO range: Up to 409600 (tele up to 819200)
• Shutter speed: 2–1/8000 s
• Photo modes: Single, timed, smart capture, panorama
• Photo format: JPEG
• Video format: MP4 (H.264)
• Max video bitrate: H.264 60 Mbps, H.265 40 Mbps
• File system: exFAT

Gimbal

• Stabilization: 3-axis mechanical (tilt, roll, pan)
• Controllable tilt: -90° to +90°
• Angular vibration: ±0.005°

Sensing System

• System type: Omnidirectional binocular vision with 3D infrared
• Obstacle detection (forward/backward): 0.5–20 m
• Obstacle detection (lateral): 0.5–16 m
• Obstacle detection (upward): 0.5–20 m
• Obstacle detection (downward): 0.5–16 m

Video Transmission

• Transmission system: DJI O4+ Enterprise
• Live view: 720p/30 fps or 1080p/30 fps
• Operating frequencies: 2.4 GHz, 5.1 GHz, 5.8 GHz
• Max transmission distance: 25 km (FCC), 12 km (CE/SRRC/MIC)
• Transmission distance with interference: 1.5–25 km
• Latency: Approx. 100 ms (aircraft to dock, network dependent)

Battery

• Capacity: 6768 mAh
• Voltage: 22.14 V
• Battery type: LiNiMnCoO2
• Energy: 149.9 Wh
• Quantity: 1

Dimensions

• Aircraft (without propellers): 37.77 × 41.62 × 21.25 cm

Weight

• Aircraft: Approx. 1.85 kg (4.07 lbs)

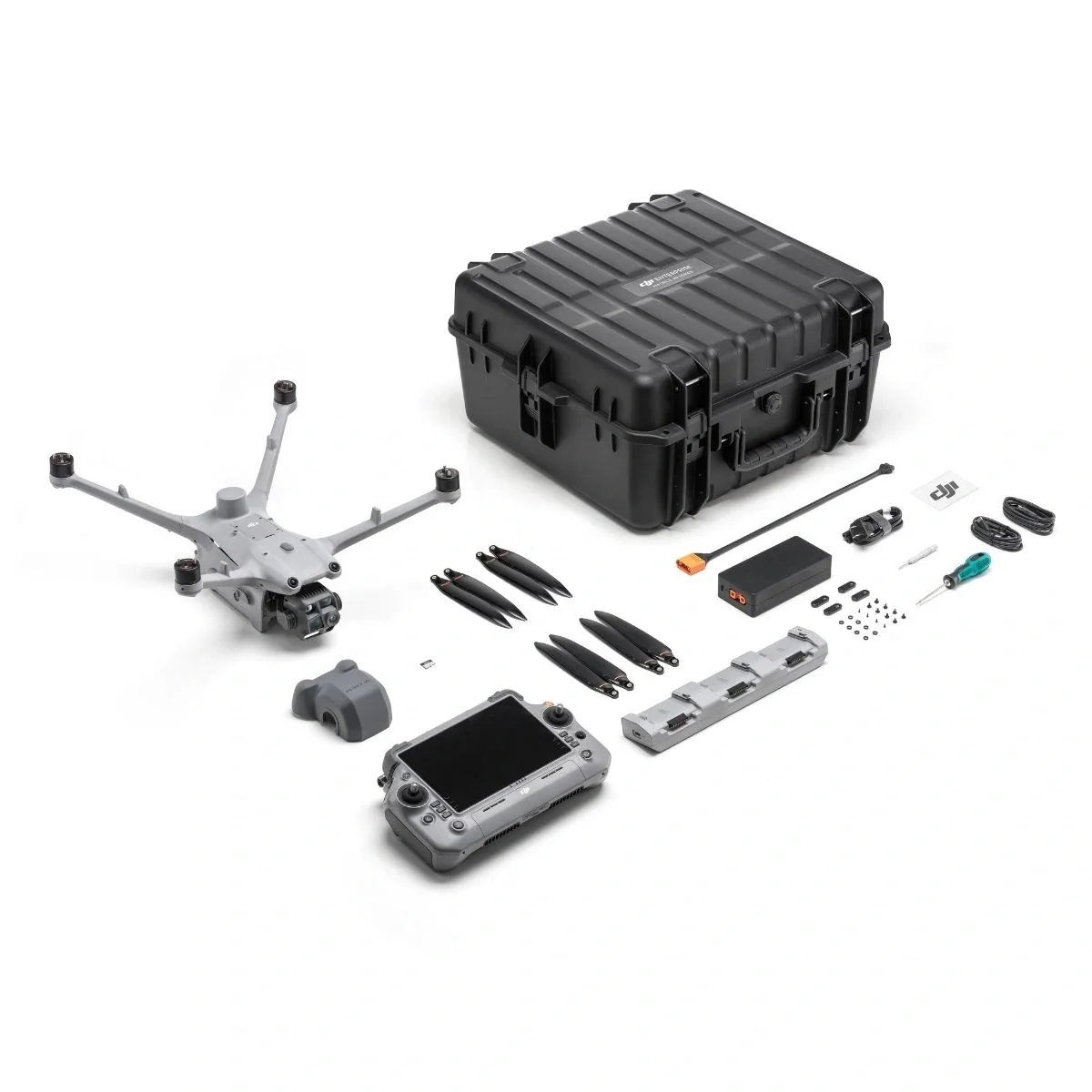

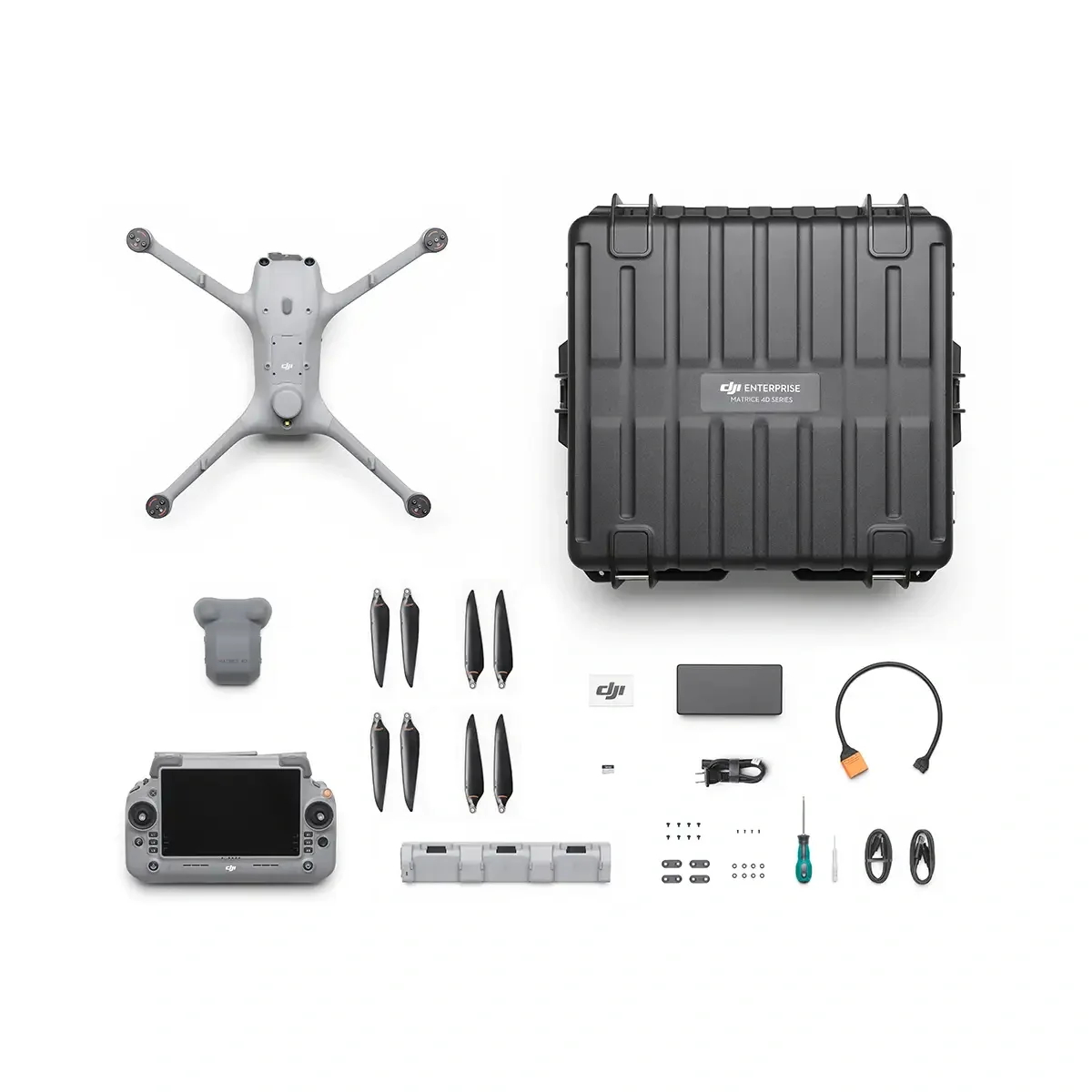

In the Box

• 1x DJI Matrice 4TD
• 1x DJI RC Plus 2 Enterprise
• 1x DJI Matrice 4D Series Low-Noise Anti-Ice Spare Propellers (Pair)
• 1x DJI 240W Power Adapter
• 1x DJI Matrice 4D Series 240W Charging Hub
• 1x DJI Matrice 4D Series Storage Case
• 1x Screwdriver Set
• 1x Screwdriver (for Remote Controller)
• 1x USB-C to USB-C Data Cable
• 1x USB-A to USB-C Data Cable
• 1x DJI Power Fast Charge Cable for Drones
• 1x Gimbal Protector
• 1x microSD Card
• 6x M2.5 Propeller Blade Screws
• 6x Rubber Washers (for Propellers)
• 4x M1.6 Aircraft Cellular Module Compartment Screws
